High Corrosion Protected Products
Clamping Set SPZ HCP
Application

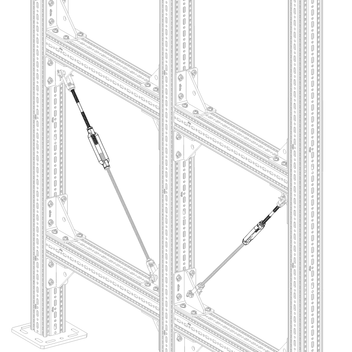

Clamping Set for construction of bracings and wind bracings e.g. in the system siFramo as tie rod to transfer loads/influences.
Scope of delivery
Clamping Set SPZ, containing:
1 turnbuckle
1 tie rod with left-/right-hand thread
Installation
The connection to the reinforcing component is made on one side of the turnbuckle with the threaded rod and on the other side with the tie rod. Connection to the structure is done by the Threaded Clevis GWB.
Technical Data
Type | max. perm. tensile load [kN] |
---|---|
M10 | 13.6 |
M12 | 21.4 |
M16 | 45.3 |

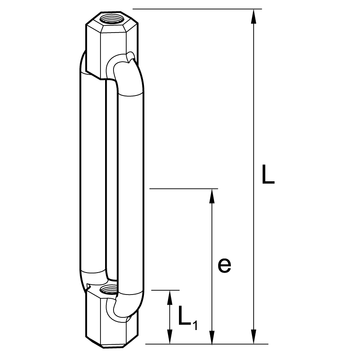

Turnbuckle:
Type | L [mm] | L1 [mm] | e [mm] |
---|---|---|---|
M10 | 125 | 10 | 62.5 |
M12 | 125 | 12 | 62.5 |
M16 | 150 | 16 | 75 |

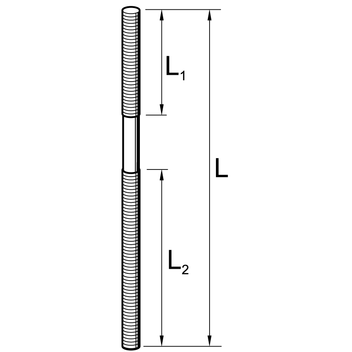

Tie rod:
Type | L [mm] | L1 [mm] | L2 [mm] |
---|---|---|---|
M10 | 250 | 80 | 130 |
M12 | 250 | 80 | 130 |
M16 | 250 | 80 | 130 |
Material: | Steel, HCP |
