Brackets

Support Bracket WK

Application

Sikla Support Brackets may be used for wall, floor and overhead pipe installation.
Depending on the site, pipes may lie on the support bracket (U bolt), be arranged in vertical position or be suspended (grub screws).
In combination with bolted-on channels, the support brackets offer a wide range of possibilities for cantilever arrangements. In addition, the load capacity of cross-bars can be increased by fixing them onto Support Brackets.

Technical Data

Material:
Steel, sizes up to 550/350 electro-galvanised
 sizes 725/400 and 880/550 hot-dipped galvanised (hdg)

Details on dimensions and carrying capacities: see following pages.
The permissible loads depicted by the characteristic curves in the graphs are taking into account the reduced load capacity of the stipulated anchors due to reduced centre distances.
Anchors could be used at your own option, but they must respect the mentioned load capacities according to DIBt approval.

Load charts:

Support Bracket WK 100/100, 100/100-40 and 150/150
Support Bracket WK 200/200
Support Bracket WK 300/200

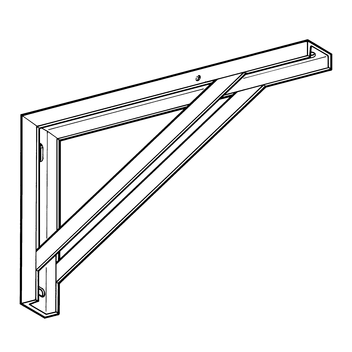

Support Bracket WK 550/350

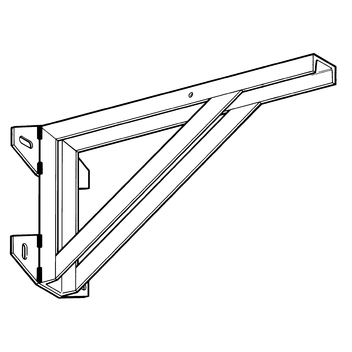

Support Bracket WK 725/400

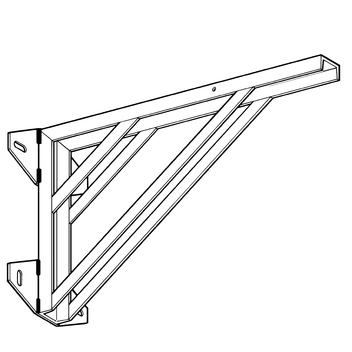

Support Bracket WK 880/550

TypeChannelW
[kg]
Quantity
[pack]
Part
number
100/100-0,1625 145626
100/100-40-0,2125 163921
150/150-0,5825 155513
200/200-1,2210 118170
300/200U 50/252,32 1 118046
550/350U 50/254,45 1 145635
725/400U 65/4212,72 1 151041
880/550U 65/4218,43 1 151050
