Ducting Supports

Ducting Angle LUW

Application

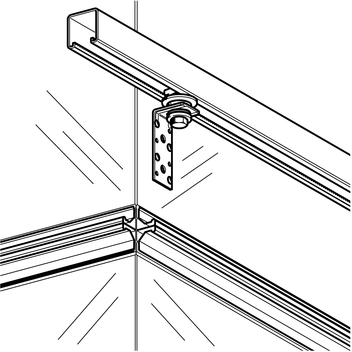

Mounting element for rectangular ducts installed directly under the ceiling, or for suspended installation when using a threaded rod.
Types SL and SZ allow for soundproof installation, also according to DIN 4109.
The adjustability in the oblong hole qualifies the adjustment of bore variations and building tolerances. For assembly on ducts with channels and T-head Bolts it guarantees the adequate distance in order to avoid structure borne sound when using versions SL and SZ.

Scope of delivery

Types SL and SZ are equipped with a pre-assembled sound absorption head including a (dia. 10.5 mm) metal bush.

Installation

Fixing to duct with rivets (4 mm), sheet metal screws (4 mm) or M8 bolts.

Technical Data

Working Load:
0.8 kN
Material (metal component):
Steel, pre-galvanised
Inserted insulation:
Up to 8,7 dB(A)
Sound absorption unit:
EPDM, black
Temperature range:
-50°C up to +110°C
TypeConnection
to building
structure
Adjustable
range
[mm]
Material
[mm]
Length
of legs
[mm]
W
[kg]
Quantity
[pack]
Part
number

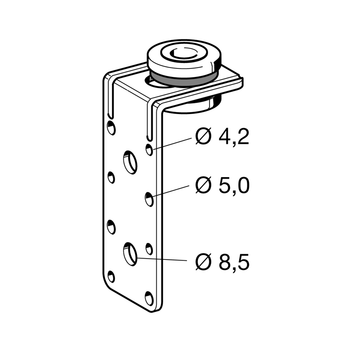

SLM8/M101335 x 2,541/850,09100 189893

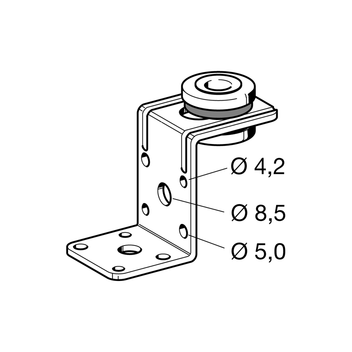

SZM8/M101335 x 2,541/53/340,09100 189902
