Ducting Supports

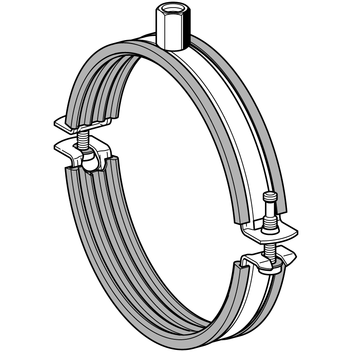

Ducting Clamp PLU TOP 2G with lining

Application

Two-piece pipe clamp for simple installation of spiral-seam ducts. Suitable for soundproof installation according to DIN 4109.

Scope of delivery

With glued-in rubber profile. Clamping bolts are pre-mounted and retained. Pivot screw for safe and simple assembly with quick-set clip, suitable for "single-hand" mounting. Easier handling and better storage possibilities due to optimized packaging

Installation

Tighten upper part of the pipe clamp without the interfering lower part.

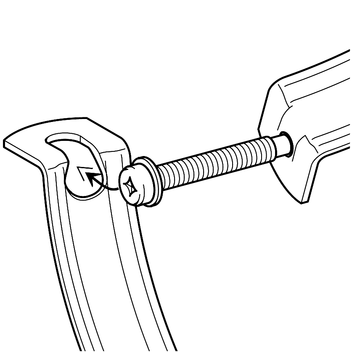

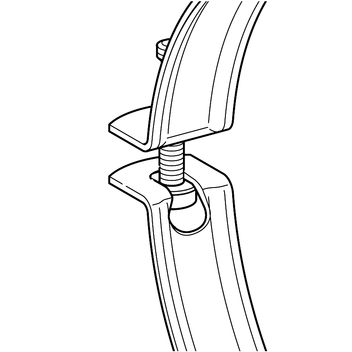

Hook lower part, provided with a keyhole, into the fixed clamping bolt (see picture). After inserting the pipe and locating into the pivot screw, the clamping bolt head is located behind the angled profiles; then tighten clamping bolt with max. 2 Nm.

Technical Data

Type
Material
[mm]
adm. load
[kN]
Thread connection
71 - 200 20 x 1.5 0.8 M8/M10
224 - 500 25 x 1.5 1.0 M8/M10

Material:
Steel, galvanised
Insulation insert:
SBR/EPDM black (rubber profile - see chapter "Sound Absorption Products")
Temperature range:
-50°C up to +110°C
TypeW
[kg]
Quantity
[pack]
Part
number
710,1150 111783
800,1250 111785
900,1350 111786
1000,15100 111787
1120,16100 111788
1250,17100 111789
1400,1970 111790
1500,2070 111791
1600,2170 111792
1800,2350 111794
2000,2550 111795
2240,4650 111796
2500,5140 111797
2800,5640 111798
3000,5940 111799
3150,6240 111800
3550,7040 111801
4000,8630 111802
4500,8720 111803
5000,9620 111804
