Ducting Supports

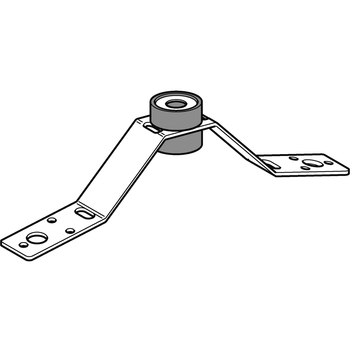

Ducting Strap LUB

Application

For quick and safe soundproof mounting of ducts either close to a ceiling, or for suspended installation when using a threaded rod. The bending points are punched, ensuring easy and exact adjustment to the pipe diameter.

Suitable if soundproof installation according to DIN 4109 is demanded.

Scope of delivery

Sound absorption component with carrying bracket and distance bush pre-assembled.

Installation

The use of 2 x 3 blind steel rivets of 4 mm is recommended.

Technical Data

Max. Working Load:
0.3 kN
Material:
Steel strap cold-worked, pre-galvanised according to DIN EN 10346
TypeConnection
bush
Thread
connection
W
[kg]
Quantity
[pack]
Part
number
Lüftungsbügelø 10,5M8 oder M100,10100 151582
