Brass Anchor ANM
Application

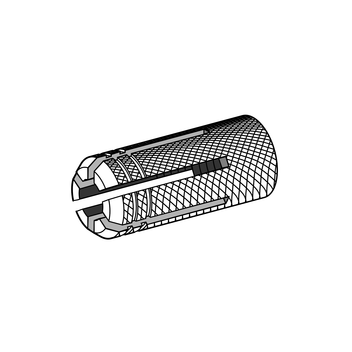

Brass Anchors with metric thread which have a gentle cone and a milled surface. They guarantee high holding forces, are safe against rotation and are anti-skidding. No need of special drills. Suitable for concrete, solid brick, natural stones, clinker brick, sand-lime bricks, solid wood and laminated timber. For fixing of channels, brackets, pipelines etc. Not suitable for humidors.
Installation
Put the anchor flush to the anchoring base, i.e. under plaster and insulating layers. After tapping the anchor in, a special surface structure prevents rotation in the drill hole. The brass expansion anchor is suitable for processing with metric bolts, which spread the anchor while tightening.
Technical Data
| Type | M6 | M8 | M10 | M12 | M16 |
|---|---|---|---|---|---|
| Max. recommended load (tensile load, lateral load, diagonal load) in non cracked concrete ≥ B25 [kN] | 0,85 | 1,50 | 2,50 | 3,50 | 3,90 |
| Max. recommended load (tensile load, lateral load, diagonal load) in solid bricks≥ 15 [kN] | 0,70 | 1,20 | 1,60 | 2,00 | 3,25 |
| Anchor depth hv ≤ [mm] | 22 | 27 | 32 | 38 | 45 |
| Drill hole dia. do [mm] | 8 | 10 | 12 | 15 | 22 |
Approvals / Conformity
None
These datas have been measured in the test laboratory and are non-binding manufacturer's recommendations.
