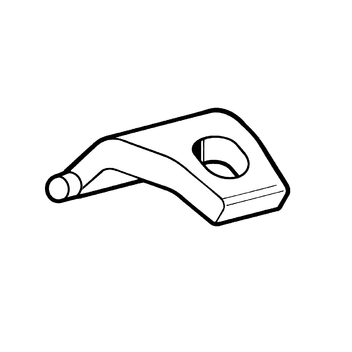

Application

Universal clamping element for bi-lateral attachment of crossbars for pipe runs, ducts, cable lines and equipment to steel beams.
The maximum clamping range may be extended by up to 10 mm by using spacers. Any thicker spacers should be welded to the crossbar.

Installation

Determination of the required bolt length Lmin:



Bolts:
M8 or M10

Torque ± 10%
50 Nm

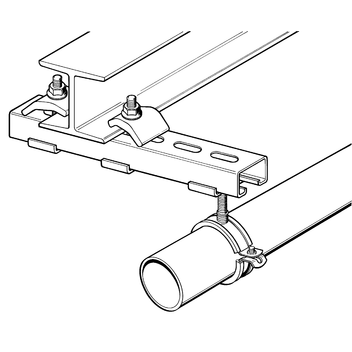

Arrangement A

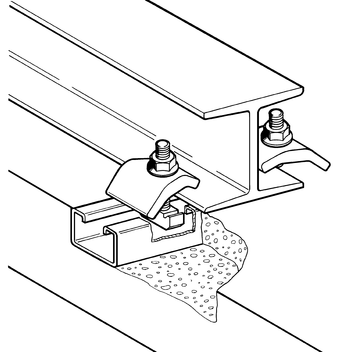

Arrangement B
Pass-through bolt
with holding bracket
Channel nut HZ

Lmin = a + b + 37 [mm]
Lmin = b + 40 [mm]


Technical Data

Type
Working load
P 1 4.0 kN

Note: For vertical installation please contact Sikla Technical Department

Material:
Cast iron or steel, electro-galvanised

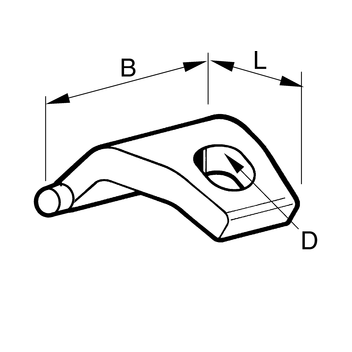

TypeSize range
[mm]
ø D
[mm]
L
[mm]
B
[mm]
W
[kg]
Quantity
[pack]
Part
number
P 11 - 231150360,1050 116196
