Application

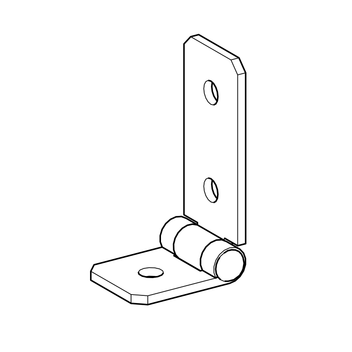

To connect Channels 41 to the building structure if an arbitrary, continuous angle adjustment up to 180° is necessary. The Joint JOI S is especially used for the connection to the structure. The two fixing points to channel ensure a rotation lock, so lateral forces can be compensated.

Installation

Version 1:

1.

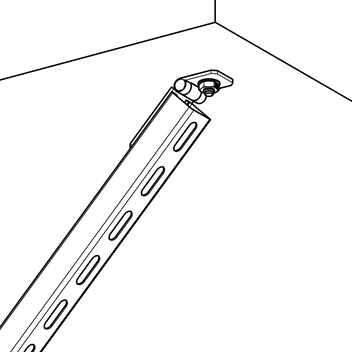

Fix the Joint JOI S by means of anchor/plug or bolt to the building structure or to the channel.
2.
Fix to channel by means of Channel Nuts M10.


Version 2:

1.

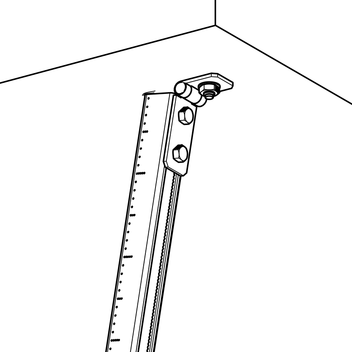

Insert the Channel Nut into the channel and fix it with the bolts.
2.
Connection to building structure or channels with appropriate anchors or bolts.

Technical Data

Nominal load:
2.0 kN
Tightening torque:
50 Nm
Material:
Steel, galvanised

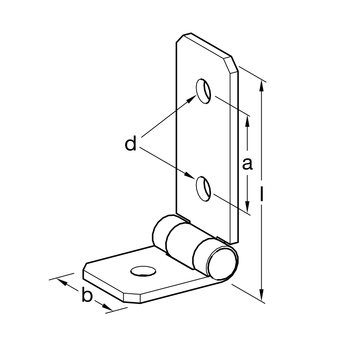

Typea
[mm]
b
[mm]
d
[mm]
l
[mm]
W
[kg]
Quantity
[pack]
Part
number
JOI S444010,5980,2150 116577
