Application

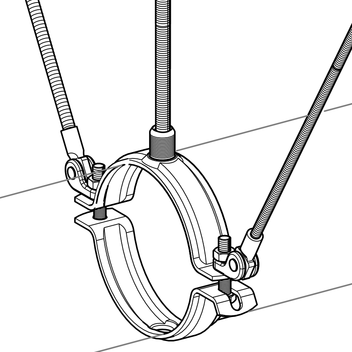

The Support Joint is fixed directly to the flanges of the pipe clamp to provide additional bracing to the overall pipe support.

  • Adjustable brace angle
  • The Support Joint can be rotated 180° radially about the clamping bolt connections either side of the pipe clamp
  • Captive pivoting link eye

Scope of delivery

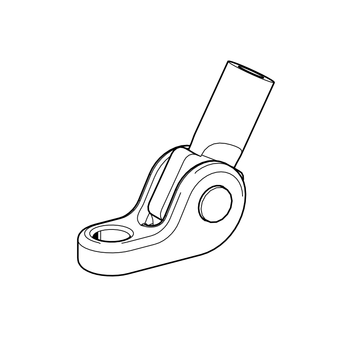

Forged Support Joint with captive pivoting Link Eye

Installation

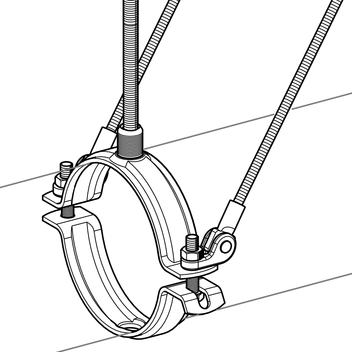

Adjustment of Support Joint by means of the pipe clamp's clamping bolts. Subsequently the threaded rod is screwed in the Link Eye.

Technical Data

Appropriate Support Joint / Pipe Clamp combinations:

SG M10-11:
Stabil D-3G (133-140 to 167-173)
Stabil D-A (76-81 to 124-129)
Stabil RB-A (13-18 to 45-49)

SG M10-13:
Stabil D-3G (176-184 to 310-316)
Stabil D-A (133-140 to 297-303)
Stabil RB-A (57-61 to 214-220)
Stabil D-M16 (218-227 and 271-277)

SG M10-17:
Stabil D-A (316-324 to 513-521)
Stabil RB-A (248-254 to 603-610)

Type
Angle α
Perm. load
[kN]
SG M10-11 0 - 45°
90°
15
5
SG M10-13 0 - 45°
90°
15
6
SG M10-17 0 - 45°
90°
15
7

Material:
Joint:
Cast, electro-galvanised
Link Eye:
Steel, electro-galvanised

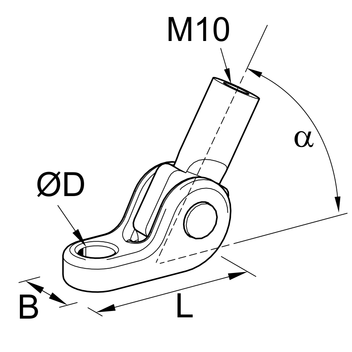

Typeø D
[mm]
B
[mm]
L
[mm]
Quantity
[pack]
Part
number
SG M10-1111205225 115044
SG M10-1313225425 115045
SG M10-17172759,525 115046
