Application

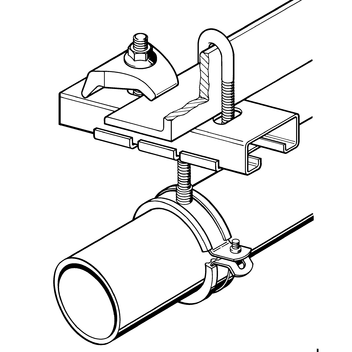

Used in combination with profiled beams as a holder for mounting crossbars composed of Sikla Channels or other standard profiles.

Technical Data

Load values:

Type
Working load
M8 2.5 kN
M10 4.0 kN

Material:
Steel, electro-galvanised

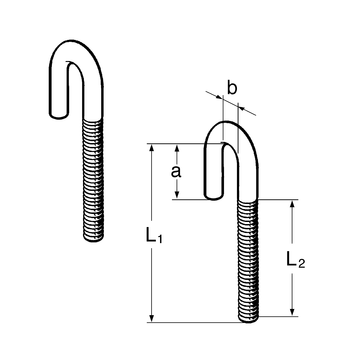

TypeL1
[mm]
L2
[mm]
a
[mm]
b
[mm]
W
[kg]
Quantity
[pack]
Part
number
M8 x 75 75 5015120,03100 101587
M8 x 115115 7025120,05100 101596
M10 x 150150 9030150,10 50 101602
