Application

For fixing pipes up to a nominal diameter of NB50 directly to ceilings made of trapezoidal corrugated sheet according to VdS/FM standards or as single point mounting solution.

In cases where VdS or FM regulations are not applicable or in cases of ventilation systems, larger loads may be fixed via crossbars and by an appropriate number of toggle studs.
By turning the threaded rod, it is possible to make height adjustments. This threaded rod is secured and cannot be unscrewed completely.
The Hypalon washer is weather-resistant and thus a crucial safety factor when sealing the mounting bore.

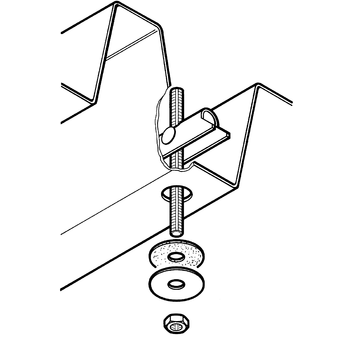

Installation

For the installation hole in the trapezoidal sheet the Hole Saw LS is to be used: Type M8 = LS 22, type TD10 = LS 25.

Technical Data

Nominal load:
0.8 kN for each fixing point
Note:
Permissible carrying capacity of the trapezoidal sheet has to be considered.
Material:
Steel, electro-galvanised, gasket elastomer

Approvals / Conformity

Types M8 for Sprinkler Systems according to Vds Standards. VdS: G4780118
Types TD 10 are approved for Sprinkler Systems by FM

Toggle Stud - G4780118 VdS PDF | 289.3 KB FM - Toggle Stud TD 10 and Roof Hanger TRH PDF | 203.2 KB

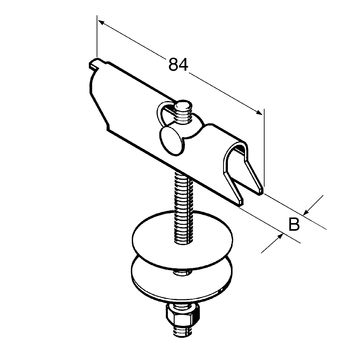

TypeSprinkler
application
Length of
grub screw
[mm]
Fitting
bore
[ø mm]
B
[mm]
W
[kg]
Quantity
[pack]
Part
number
M8 x 100VdS 10022140,11100 113810
M8 x 200VdS20022140,14 50 125569
TD10 x 100FM10025160,13100 126065
TD10 x 200FM20025160,18 50 125578
