Adapter AD f/f

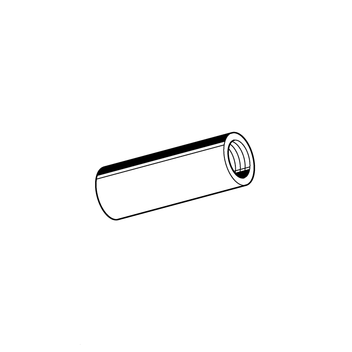

Form A

Form B

Group:

1333

Application

Additional connection options for all Sikla Pipe Clamps equipped with 3G triple thread nut, fixed points and threaded tubes.

Technical Data

Material:
Form A:	Steel, electro-galvanised
Form B:	Malleable cast iron, electro-galvanised

Type	Form	Length [mm]	A/F [mm]	W [kg]	Quantity [pack]	Part number
M16/M10	A	35	19	0,05	50	106740
M16/M12	A	35	19	0,04	50	124665
M16/M16	A	30	19	0,03	50	106290
1/2"/M10	A	35	24	0,07	10	146371
1/2"/M12	A	35	24	0,06	25	156639
1/2"/M16	A	40	24	0,07	25	124656
1/2"/1/2"	A	35	24	0,11	10	146380
3/4"/M10	A	35	32	0,15	10	105651
3/4"/M12	A	35	32	0,08	10	105749
3/4"/M16	A	35	32	0,14	10	105660
3/4"/1/2"	A	35	32	0,08	10	146399

1"/M10	B	40	22	0,13	10	105679
1"/M12	B	40	22	0,13	10	105758
1"/M16	B	40	22	0,12	10	105688
1"/1/2"	B	40	27	0,12	10	146405
