Pipe Clamps and Accessories

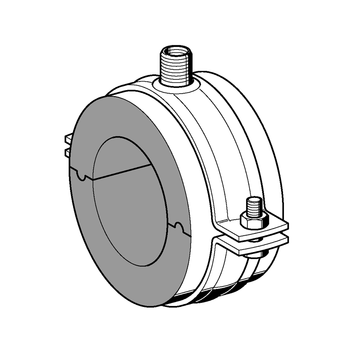

Chilled Water Clamp CMP
Application
Chilled Water Clamp with insulation cores of various thickness for fixing cold-water pipeline systems and chilled water installations. Prevents temperature bridging and condensation between pipe and pipe clamp. For steel pipes from outside dia. 114 mm on, we recommend the use of a Load Plate.
Scope of delivery
Insulation insert: Two interlocking PUR segments joined by outer aluminium foil.
Pipe Clamp: Two-piece Sikla Pipe Clamp with multi-thread connecting nut. See the table below for direct connection options. For adapter/ reducer-based connection clamp and insulation insert are delivered loose.
Technical Data
|

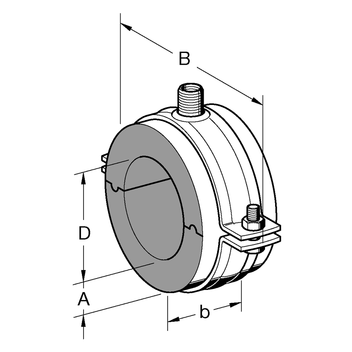

ø D pipe [mm] | Max. recommended distance between 2 supports [m]* | Suitable Load Plate |
|---|---|---|
| 21 | 1.50 | - |
| 27, 34 | 2.00 | - |
| 42, 48, 60 | 2.50 | - |
| 76, 89, 102, 108 | 3.00 | - |
| 114, 133, 140 | 4.00 | CMP/PR 240 |
| 159, 168, 219 | 4.00 | CMP/PR 340 |
| 273 | 4.00 | CMP/PR 400 |
| * | The values indicated are based on the use of the relevant Load Plate from outside dia. 114 mm on. |
| Insulation core: | PUR, specific gravity 80 kg/m³ |
| Vapour shield: | Aluminium foil |
| Temperature range: | 0°C up to +105°C |
| Thermal conductivity: | λ = 0.024 - 0.026 W/(mk) at 0°C |
| λ = 0.038 W(mk) at 10°C | |
| λ = 0.040 W(mk) at 10°C | |
| Fire resistance: | Insulation and vapour shield: material category B2 |
| Clamp material: | Steel, electro galvanised |
| In case you require dimensions or material other than those listed, please contact us. |
