Application

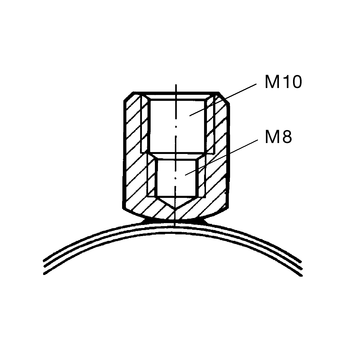

Two-piece pipe clamp with double threaded nut (M8/M10) for installing pipe systems for M&E services. For soundproof ceiling, floor and wall installations. With time-saving quick-set clip.
From 4" on, or when higher static loads occur, or under reversed bending stress, we recommend the use of a Stabil Pipe Clamp with lining.

Installation

After pressing together both parts of the clamp, the clamping bolt head must be located behind the angled profiles; then tighten clamping bolt (2 Nm).

Technical Data

Size [mm]
Max. perm.
working load (tension)
12 - 84
0.60 kN
83 - 90
0.95 kN
108 - 114
1.15 kN

The recommended load is calculated using specific statistical methods relating to break load and is designed to restrict deflection to 1.5 mm or 2 % of the maximum applicable clamping diameter.

Perm. load FZperm,fi in case of fire

Size range
[mm]
FWD 30
[N]
FWD 60
[N]
FWD 90
[N]
FWD 120
[N]
Deformation
δmax [mm]
Thread

12 - 84 290 130 70 50 35 M10
83 - 90 390 210 130 90 31 M10
108 - 114 540 270 170 120 46 M10

Material:
Clamp:
Steel, electro-galvanised
Spring element:
Spring steel
Sound absorption lining:
SBR/EPDM (black) (see chapter "Sound Absorption Products")
Sound absorption:
Up to 17 dB(A)

Approvals / Conformity



This product has been awarded the RAL quality marks "pipe supports" and "fire-tested pipe supports" and is subject to continuous external monitoring according to RAL GZ-655.
Size range
[mm]
NBThread
connections
W
[kg]
Quantity
[pack]
Part
number
12 - 201/4" - 3/8"20 x 1,50,05100 157418
21 - 271/2" - 3/4"20 x 1,50,06100 157427
28 - 351"20 x 1,50,07100 157436
38 - 451 1/4"20 x 1,50,09 50 157445
48 - 561 1/2"20 x 1,50,09 50 157454
57 - 632"20 x 1,50,10 50 157463
64 - 7120 x 1,50,12 25 157472
74 - 842 1/2"20 x 1,50,12 25 157481
83 - 903"20 x 2,00,16 25 157490
108 - 1144"25 x 2,00,26 25 157506
