Application

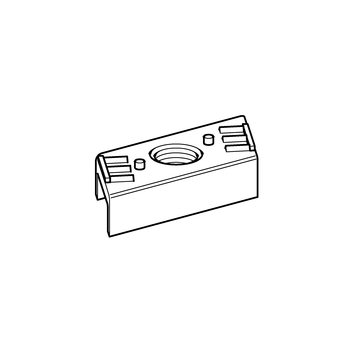

Channel Nuts NT 41 are suitable for Channels MS 41.

Technical Data

M8
M10
Tightening torque 8.8 1) [Nm] 25 40

1)
Using lower steel classes, the value are to be reduced accordingly.

Channel
thickness
[mm]
M8 2)
FZ ≤
[kN]
M10 2)
FZ ≤
[kN]

M8
FQ ≤
[kN]
M10 2)
FQ ≤
[kN]
1.5 3.0 3.0   1.8 2.9
2.0 5.8 5.8   2.1 3.4
2.5 5.8 5.8   2.6 4.1
3.0 5.8 5.8   2.8 4.4

Note: The permissible load capacities of the channels are to be respected.

Material:
Malleable cast iron, electro-galvanised

Approvals / Conformity



This product has been awarded the RAL quality mark "pipe supports" and is subject to continuous external monitoring according to RAL GZ-655.

2) Tested load values 'connection design' according to certificate 2010-07/2010-09.

TypeW
[kg]
Quantity
[pack]
Part
number
41-M80,0350 180173
41-M100,0350 180182
