Application

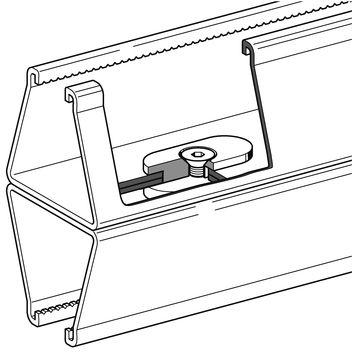

Used for assembling double channels made from Sikla Channels with slot pattern III or IV, i.e. with a minimum material thickness of 2.0 mm.
This system could be used for pre-assembly in a workshop also.
A torque wrench is required in order to ensure that the static values indicated on page 3-7 are achieved.

Attention: These values are only guaranteed when using Sikla Channels.

Scope of delivery

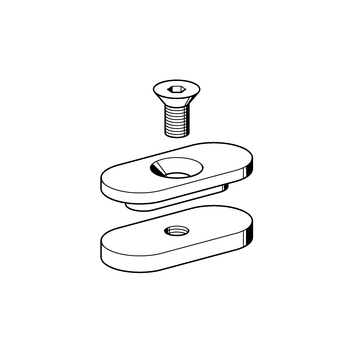

Consists of forming plate, pressure plate and a hexagon socket bolt M8 (DIN 7991)

Installation

Max. spacing between connecting points is 500 mm, with one point at each end of the channel section. Required number of Clamping Units: channel 2m = 5 pcs., channel 6m = 13 pcs.
For Channel 41/21/2,0 no connecting elements, like channels nuts, etc. could be placed directly above the connectors.
Torque: M = 25 Nm

Technical Data

Material:
Malleable cast iron, electro-galvanised
TypeFor Sikla ChannelW
[kg]
Quantity
[pack]
Part
number
KL 141/21/2,0 bis 41-75/75/3,00,1150 118055
