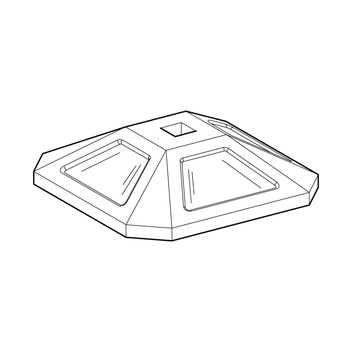

Insulated Foot SHB SQF

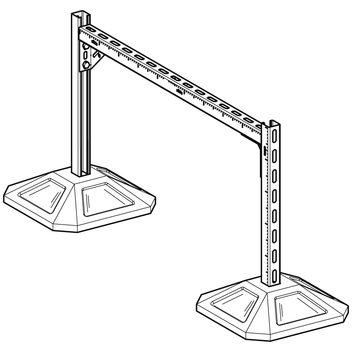

Comprehensive solution out of synthetic rubber for flat roofs and central energy supply centers with coated floor. In combination with the Sikla Assembly System any structures can quickly and simply be realised. The water permeable rubber allows a secure and reliable support with constant load distribution. Particularly suitable for the fixation of aggregates, pipings, ventilation ducts and walkways.

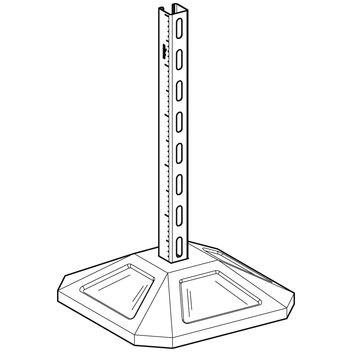

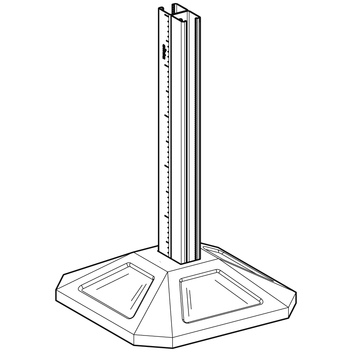

Depending on the Insulated Foot either a Channel MS 41/41 or a Channel MS 41/41 D can be plugged in.
Insert the Channel MS 41/41 or 41/41 D into the Insulated Foot's slot.
| Type|| max. perm.|
pressure load FN [kN]
| Insertion depth|
|SQF 350||16||100|| 60|
Tests to determine the coefficient of friction shall be carried out by the customer. Depending on the used roofing film the customer has to decide if an additional separation layer (e.g. fleece) is necessary. Furthermore the statics have to be verified by a qualified engineer.
| Material:||Styrene butadiene rubber|
