Pressix CC 41 - Assembly System

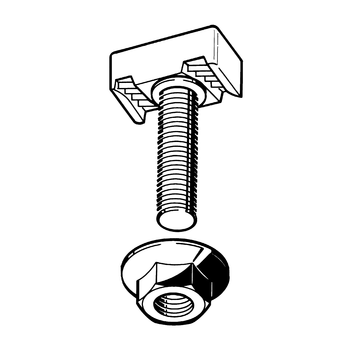

T-Head Bolt TBO HZ 41

Application

Suitable for Channels MS 41.

Scope of delivery

With washer and nut (supplied loose).

Technical Data

Type
Tightening
moment
Mdmax [Nm]
Permissible
load
(tension) [kN]
Permissible axial load
in combination with
serrated channels1) [kN]
Permissible
bending
moment 2) [Nm]
HZ 41 M8 10.0 5.8 1.5 5.0
HZ 41 M10 18.0 9.3 2.5 10.0
HZ 41 M12 32.0 10.0 3.0 17.5
HZ 41 M16 79.0 10.0 3.0 44.5

1) The values indicated refer to the point of application of force being near the top edge of the channel. In cases where tension and lateral tension are encountered, the resultant total load may not be greater than the values given.
2) The effective bending moment may not exceed the permissible maximum torsional moment of the channel.

Material:
Head:
Steel, electro-galvanised
Bolt:
Steel class 4.6, electro-galvanised
TypeLength L [mm]Available length
of thread [mm]
W
[kg]
Quantity
[pack]
Part
number
HZ 41 M 8 x 1520150,0850 151953
HZ 41 M 8 x 2025 200,0850 151962
HZ 41 M 8 x 2530250,0850 151971
HZ 41 M 8 x 3540350,0850 151980
HZ 41 M 8 x 5560550,0850 151999
HZ 41 M 8 x 7580750,0950 152006
HZ 41 M 8 x 95100950,1050 152015
HZ 41 M 10 x 1520150,0850 152024
HZ 41 M 10 x 2025200,0950 152033
HZ 41 M 10 x 2530250,0950 152042
HZ 41 M 10 x 3540350,0950 152051
HZ 41 M 10 x 5560550,1050 152060
HZ 41 M 10 x 7580750,1150 152079
HZ 41 M 10 x 95100950,1250 152088
HZ 41 M 12 x 2025 200,1250 152167
HZ 41 M 12 x 2530250,1350 152176
HZ 41 M 12 x 3540350,1450 152185
HZ 41 M 12 x 5560550,1550 152194
HZ 41 M 12 x 7580750,1650 152200
HZ 41 M 12 x 95100950,1850 152219
HZ 41 M 16 x 2530250,1550 152228
HZ 41 M 16 x 3540350,1750 152237
HZ 41 M 16 x 5560550,1950 152246
HZ 41 M 16 x 7580750,2250 152255
HZ 41 M 16 x 95100950,2450 152264
