siFramo 80

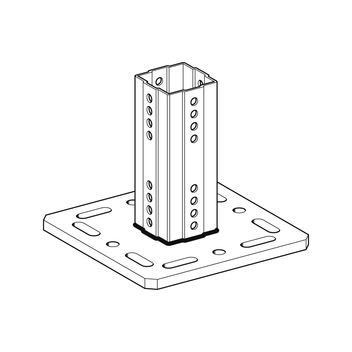

End Support WBD F 80

Application

Plug-in component designed to create a square end plate at the open end of a Beam Section TP F80 or a Beam Bracket/Cantilever bracket AK F80. Variation "T" with octagonal insert allows full utilisation of beam section within the space
required by the End Support WBD itself.

Installation

Depending on the situation, different options are recommended:

a)
Directly to building structure: 4 x suitable wall anchors and 4 Self Forming Screws FLS applied to the square/octagonal insert
b)
To traditional steel beams between 80 – 310 mm flange dimensions: 1 x Assembly Set 5P M12 S, M16 S and 4 Self Forming Screws FLS applied to the square/octagonal insert
c)
To Sikla Simotec steel beams 100/120: with Bracket Plates FV 100/120 when positive mechanical connection required

The Beam Section TP F 80 connected to the End Support WBD F 80 has to be screwed with 4 Self Forming Screws FLS F. On each of the opposite sides 2 Self Forming Screws FLS F are necessary. The permissible distance between base plate WBD and profile must not exceed 30 mm.

Technical Data

Type
Base plate
finish
for flange
width
[mm]
Dimensions of
base plate
[mm]
Slots in base
plate
[l x b]
WBD F 80-80/120 flat 80 - 120 220 x 220 x 12 30 x 14
WBD-P F 80-121/160 corrugated 121 - 160 320 x 260 x 12 20 x 14
WBD-P F 80-161/200 corrugated 161 - 200 320 x 310 x 12 20 x 18
WBD-P F 80-201/310 corrugated 201 - 310 420 x 220 x 12 55 x 18
WBD F 80-T flat 80 - 120 220 x 220 x 12 30 x 14

Type
e
[mm]
L
[mm]
t1
[mm]
Slots in base
plate for
WBD F 80-80/120 max. distance 202 - M12
WBD-P F 80-121/160 max. distance 202 27 M12
WBD-P F 80-161/200 max. distance 202 27 M16
WBD-P F 80-201/310 max. distance 202 27 M16
WBD F 80-T max. distance 152 - M12

Configuration:
Plate welded to square F 80 resp. octagonal element F 80 (only WBD F 80-T)
Material:
Steel, HCP

Approvals / Conformity

CE mark (Declaration of performance see www.sikla.com/service/downloads)

Declaration of performance End Support WBD F PDF | 340.6 KB

TypeW
[kg]
Quantity
[pack]
Part
number
WBD F 80-80/1205,21 192801
WBD-P F 80-121/1608,71 117164
WBD-P F 80-161/20010,21 117165
WBD-P F 80-201/3109,41 117166
WBD F 80-T4,81 192849
