siFramo 80

Mounting Plate GPL F 80 Stabil

Application

Adapter plate for installing pipe clamps to Beam Section TP F80 or Channel System by means of threaded tube 1/2".

Installation

Connection to the Channel System by means of Speed Nut CC41 and Hexagon Bolts. The two drilled holes in the Adapter Plate mean that the Plate may also be installed to concrete.

Technical Data

Permissible bending moment of the Threaded Tube 1/2" MBmax, should not be exceeded. Any lateral loads on the pipe clamp also need to be considered.

Type
Tension
[kN]
Lateral force
[kN]
Perm. bending moment
[Nm]
GPL F 80 ST-1/2" 18,0 13,0 53
GPL F 80 ST-3/4" 18,0 13,0 138
GPL F 80 ST-1" 18,0 13,0 277

Material:
Steel, electro-galvanised

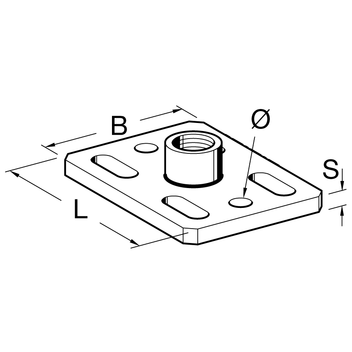

TypeDimension
L x W x Th
[mm]
Elongated hole
d x a
[mm]
ø
[mm]
W
[kg]
Quantity
[pack]
Part
number
GPL F 80 ST-1/2"110 x 80 x 811 x 20110,5025 451280
GPL F 80 ST-3/4"110 x 80 x 811 x 20110,5025 451281
GPL F 80 ST-1"110 x 80 x 811 x 20110,5025 451282
