Sound Absorption Products

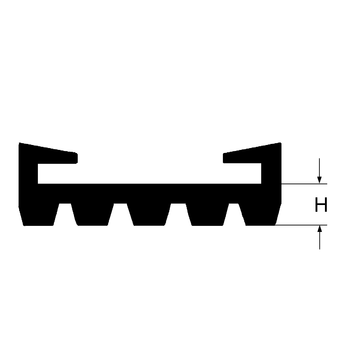

Rubber Profile SAL SBR/EPDM

Application

Sound absorption lining for steel straps and pipe clamps (also according to DIN 4109). Application up to +110°C.

Technical Data

Material:
SBR/EPDM, black
Hardness:
45+/-5° Shore
Temperature range:
-40°C up to +110°C
Breaking elongation:
min. 500 %
Tear strength:
400 N/cm2
Fire resistance:
Material category B2 (DIN 4102),
non-dripping
Sound absorption:
Up to18 dB(A)
Fully resistant to:
Diluted acids, lyes, alkaline solutions, water, aqueous solutions up to 70°C;
No absorption of moisture
Partially resistant to:
Grease, mineral oil, animal or vegetable fats, ester and ketones
Not resistant to:
Hot oils, fuels, aliphatic and aromatic hydrocarbons and chloric gas
Durability:
Weatherproof, ageing and ozone-resistant, DIN 53508 and 53509 tested
TypeSteel strap
[mm]
H
[mm]
Number of
ribs
Weight
[kg/m]
Quantity
roll
[m]
Part
number
STD 125 x 3,04,540,1930 146502
STD 230 x 3,04,040,2030 146511
STD 340 x 4,06,050,3130 146520
STD 450 x 5,07,050,3930 146539
STD 570 x 6,07,070,5230 146548
