Stainless Steel Products

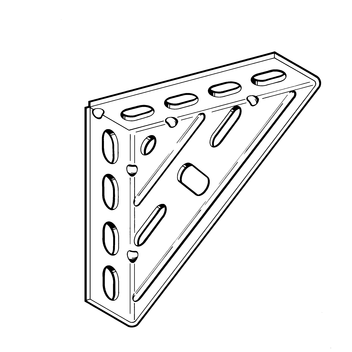

Support Bracket WK ss

Application

May be used for wall, floor and overhead pipe installations. Depending on the site, pipes may lie on the support bracket (U bolt), be arranged in vertical position or be suspended (grub screws).

In combination with bolted-on channels, the support brackets offer a wide range of possibilities for cantilever arrangements. In addition, the load capacity of crossbars can be increased by fixing them onto Support Brackets.

Technical Data

Material:
Stainless steel A4

For further technical data or carrying capacities, see chapter "Brackets"

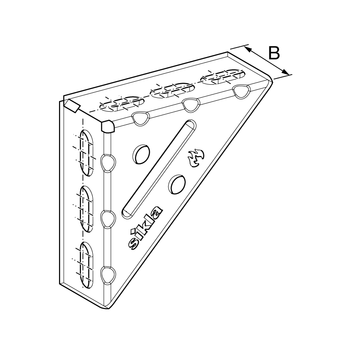

TypeW
[kg]
Quantity
[pack]
Part
number
100/1000,1625 118383
150/1500,5825 193655
