Pressix CC 27 - Assembly System

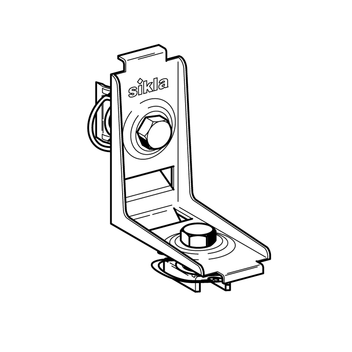

Angle Connector CN CC 27-90°

Application

Pre-assembled connecting angle especially for frames made of Channels MS 27. Type W for connection to wall, floor or ceiling.

  • Quick-locking mechanism for 90° junction of CC-27 system.
  • By pressing on the bolt head the connector automatically locks into the channel, supporting its own weight and retaining its position, enabling easy adjustment.
  • Secure form-locked connection. Serrated channel nut with M8 clamping bolt. Stiff and strong due to high-performance steel and geometric design.

Technical Data

Working load:
Fxshear = 0,8 kN per Angle Connector
Tightening torque:
10 Nm
Material:
Steel, electro-galvanised

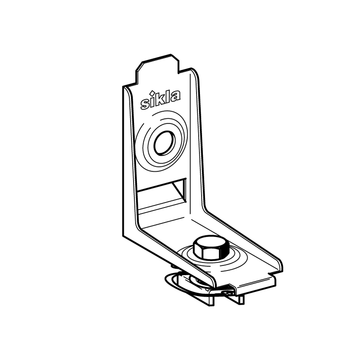

TypeW
[kg]
Quantity
[pack]
Part
number
CC 27-90°0,0950 195772
CC 27-90° W0,0750 195789
