Pressix CC 27 - Assembly System

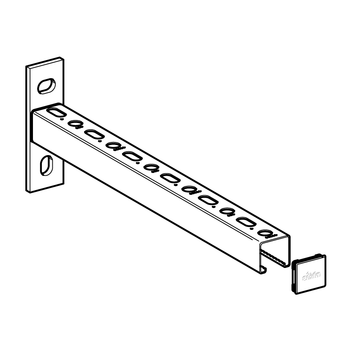

Cantilever Bracket AK 27 - 1,25

Application

Recommended for wall suspension or fixing to other building structures.

Installation

For cantilever projections in excess of 500mm we recommend a vertical brace and for lateral forces on the cantilever, use a lateral brace connected via Fixing Bracket MW S 45/30/90

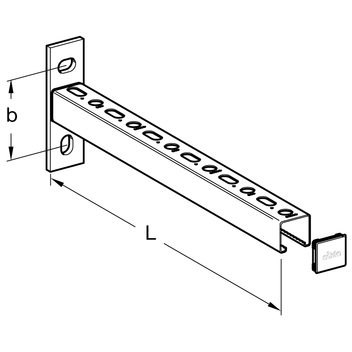

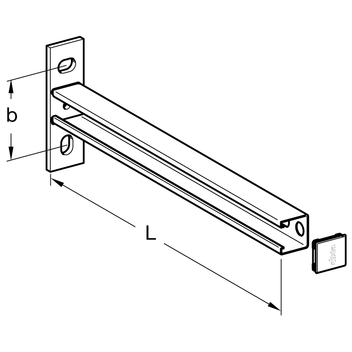

Technical Data

1 = Type 27/25
2 = Type 27/37

Perm. anchor laods to be considered
σact. ≤ σadm.
fadm. ≤ L/150

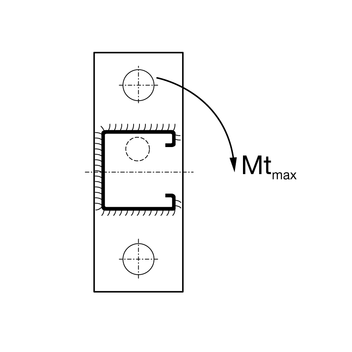

Max. torsional moment Mtmax without considering
the torsional angle
Mtmax = 20 Nm

Material:
Steel, electro-galvanised
TypeL
[mm]
b
[mm]
Dimensions of
elongated hole
[mm]
W
[kg]
Quantity
[pack]
Part
number
27/25 - 2002036410 x 150,2525 112326
27/25 - 2502536410 x 150,2925 112327
27/25 - 3003036410 x 150,3425 112328
27/25 - 5005036410 x 150,4925 112329
27/25 - 7007036410 x 150,651 112330
27/25 q - 3003036410 x 150,3425 112366

27/37 - 3003046410 x 150,4325 111458
27/37 - 5005046410 x 150,6425 111459
27/37 - 7007046410 x 150,841 111460
27/37 - 8008046410 x 150,961 111461
