Application

The Cross Tee IR-E is used to create an end connection for installation grids made of Channels 41. In combination with Channels 41 and the Cross Tee IR-M a complete installation grid can be created. For the connection to the structure the Tension Tie Rod Disc IR, which enables a y-suspension, can be used if necessary.
An installation grid system allows a cost- and time-saving adjustment of the pipe and cable supplies. New production process requirements can be implemented efficiently.

  • Saving time by means of Pressix CC-components
  • Flexible choice of Channels
  • Simple modificaton of End and Cross Tees

Scope of delivery

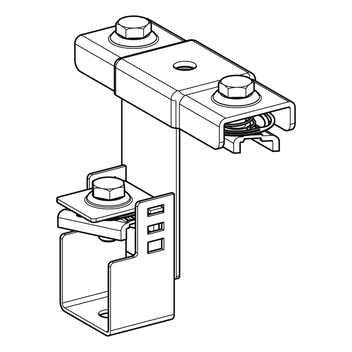

1 x Suspension Holding Bracket IR-RA M10
1 x hooked feeder plate
1 x clamping plate
1 x hexagon bolt M10 x 25
1 x Speed Nut NT CC 41

Installation

1.

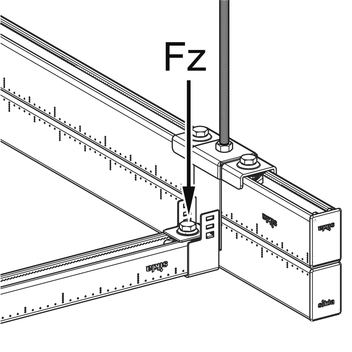

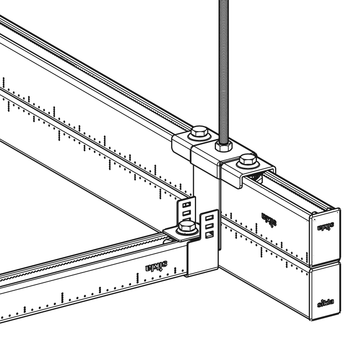

Mount the hooked feeder plate of the End Tee to the main runner.
2.
Place the suspension holding bracket over the hooked feeder plate and tighten it.
3.
Insert the cross strut section into the hooked feeder plate and fix it by means of the clamping plate, Speed Nut NT CC 41 and hexagon bolt.

Technical Data

Type
appropiate
main runner
appropiate
cross strut section
H
[mm]
B
[mm]
L
[mm]
d
[mm]

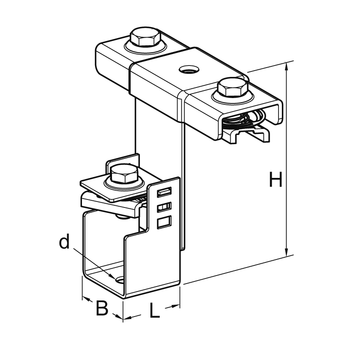

IR-E 41/52 D MS 41/52 D MS 41/41, 41/52, 41/62 104 43 40 11
IR-E 41/62 D MS 41/62 D MS 41/41, 41/52, 41/62 124 43 40 11

Max. perm. load per fixing point Fz:
6 kN
Tightening torque:
10 Nm
Material:
Steel, galvanised
TypeW
[kg]
Quantity
[pack]
Part
number
IR-E 41/52 D0,626 116600
IR-E 41/62 D0,626 116601
