Pressix CC 41 - Assembly System

Tension Tie Rod Disc IR

Application

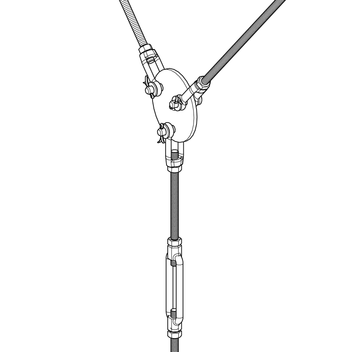

The Tension Tie Rod Disc IR can be used to fix an installation grid to the building structure. By means of the 3 Threaded Clevis GWB it is possible to create a y-suspension easily. Combined with the Clamping Set SPZ HCP the height adjustment of the installation grid becomes easy.

Technical Data

Max. perm. load per fixing point:
13,6 kN
Material:
Steel, galvanised
TypeW
[kg]
Quantity
[pack]
Part
number
IR M100,618 116602
