siFramo 80

End Support STA F 80/30 E

Application

Plug-in component designed to create an endplate at the open end of a Beam Section TP F80/30 a Cantilever bracket AK F80/30.

Installation

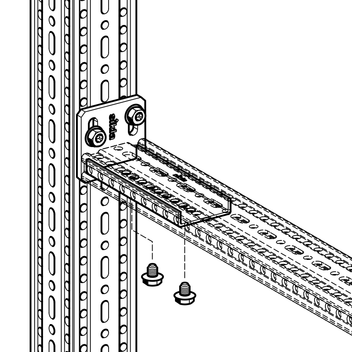

The Beam Section TP F 80/30 connected to the End Support STA F 80/30 E has to be screwed with 2 Self Forming Screws FLS F.

Technical Data

Type
Dimensions of Base plate
[mm]
Slots in
Base plate for

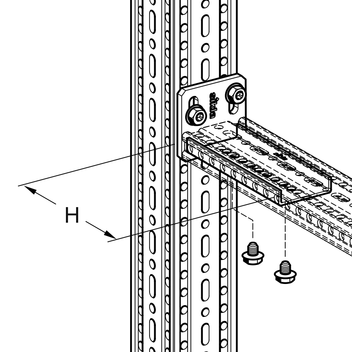

H
[mm]
STA F 80/30-80-E 80 x 80 x 8 M10 178

Material:
Steel, HCP

Approvals / Conformity

CE mark (Declaration of performance see www.sikla.com/service/downloads)

Declaration of performance End Support STA F PDF | 189.6 KB

TypeW
[kg]
Quantity
[pack]
Part
number
STA F 80/30-80-E0,81 113066
