Sound Absorption Products

Rubber-Metal-Combination Element GMT

Application

The Rubber-Metal Combination Element GMT suppresses vibrations originating from various systems. Such vibrations generated by the system (such as motors, boilers..) are normally transmitted as sound to the environment via rigid building structures. The mounting situation does not affect the efficiency of the Sikla Rubber-Metal Combination Element GMT, this element may also be applied as a horizontal stop buffer.

Scope of delivery

1 Set = 4 elements
Each element is accompanied by two hexagon nuts.

Technical Data

Type
Maximum load
Fmax [kN]
Mean spring constant c
[kN/mm]
M12 5.0 2.2

Temperature range:
-30°C up to +70°C
Material:
Sound absorption insert:
Natural rubber, 57+/-5° Shore
Metal parts:
Steel, electro-galvanised

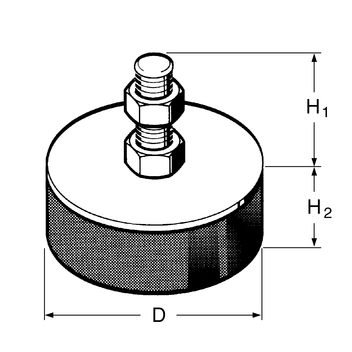

TypeConnectionD
[mm]
H1
[mm]
H2
[mm]
W
[kg]
Pack.
[Set]
Part
number
GMT M12M12 7537251,141 117090
