Sound Absorption Products

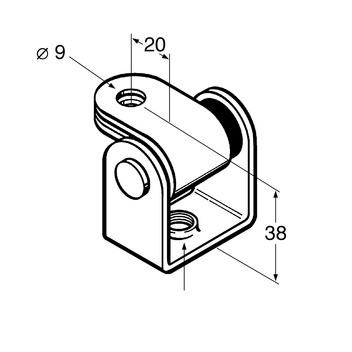

Sound Absorber SDE 0

Application

May be used for ventilation systems and other M&E services, mainly for direct ceiling attachment.
Can be combined with other support components such as Ducting Angles, Pipe Clamps, Channels or special structures. May also function as an efficient band hanger when turned by 180°.

Technical Data

Working load:
1.0 kN
Sound absorption insert:
SBR/EPDM (black)
Hardness:
45+/-5° Shore
Temperature range:
-50°C up to +110°C
Class:
B2 according to DIN 4102
Sound absorption value:
Up to 15 dB(A)

Material:
Steel, electro-galvanised
TypeConnection to
building structure
System
connection
W
[kg]
Quantity
[pack]
Part
number
SDE 0 - M8ø 9 für M8M80,07100 105068
SDE 0 - M10ø 9 für M8M100,07100 105077
